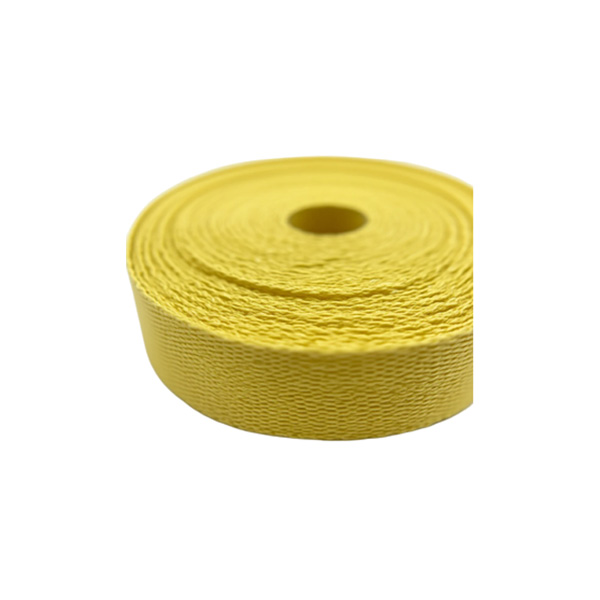

FR aramid water ripple webbing

"FR aramid water ripple webbing" refers to a high-performance Flame-Retardant (FR) webbing made from aramid fibers (such as Kevlar® or Nomex®) featuring a specialized "water ripple" (also known as "wave" or "undulated") weave pattern.

The "Water Ripple" Pattern

Visual Effect: This pattern is characterized by wavy, curvilinear ridges that mimic the appearance of ripples on water. It is achieved through complex weaving techniques, such as a varied twill progression, which creates an "ebb and flow" texture rather than standard straight diagonal lines.

Functional Benefits: Beyond aesthetics, the ripple texture provides enhanced grip and increased surface area, which can improve the "bite" of buckles and adjustment hardware. The undulating structure also offers slightly more longitudinal flexibility than a standard plain weave while maintaining high tensile strength.

Aramid Material Properties (Kevlar/Nomex)

Inherent Flame Resistance: Unlike many other webbings, aramid fibers do not require chemical treatments to be flame-retardant. They are inherently non-combustible and will not melt or drip when exposed to heat.

Extreme Heat Stability: They remain stable at temperatures up to 560°C (1,040°F) and maintain structural integrity in extreme cold (down to -196°C).

Superior Strength: Aramid webbing is approximately 5–6 times stronger than steel on an equal-weight basis.

Primary Applications

Safety Harnesses: Where both fire protection and non-slip adjustability are critical (e.g., for electrical workers or firefighters).

High-End Tactical Gear: Used for straps that require a premium look without sacrificing Mil-Spec performance.

Industrial Hoisting: The textured surface helps prevent slippage in specialized traction or lifting applications.

Webbing Customization

● Material: PP, Nylon, Nylon 6.6, Recycled, Polyester, Polyester/Cotton Blends, Dull yarn, Aramid, Kevlar, UHMWPE

● Function: Anti infrared ( 350-3000nm ), Fireproof ( FAR 25, ISO 3795 ), Waterproof ( Fluorine -Free ), Anti-UV ( Color fastness 4-5 grade ), Resin treatment etc.

● Camouflage: customized, available in double sides pattern matching.

● Color: customized, Pantone, RAL, LAB value, fabric, webbing swatch.

● Specification: Width in 5-300 mm, thickness in 0.5-8 mm

● Weave: Flat, plain, tubular, twill, herringbone etc.
