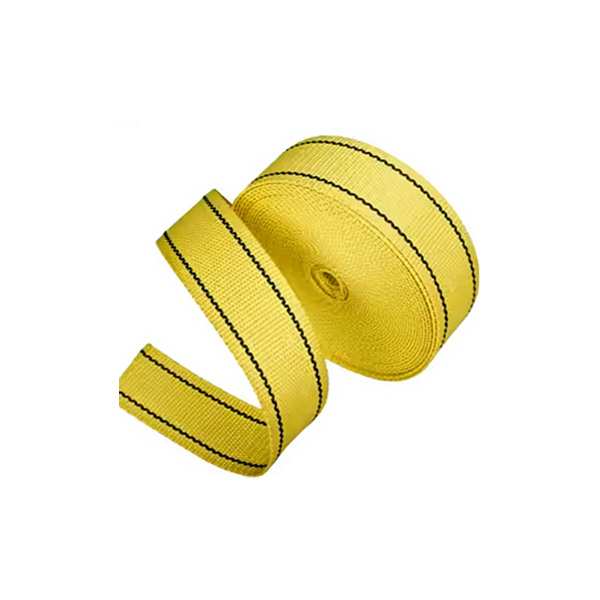

FR aramid corrugated webbing

"FR aramid corrugated webbing" refers to Flame-Retardant (FR) webbing made from aramid fibers (like Kevlar® or Nomex®) that features a corrugated (ridged or wavy) texture. This weave pattern enhances grip and flexibility while maintaining the material's inherent fire safety and high strength.

The "Corrugated" Pattern

Description: The term "corrugated" in webbing refers to a raised, textured surface, typically a wave-like or ridged pattern, created during the weaving process. This is similar in function to the "water ripple" pattern.

Functional Benefits:

Enhanced Grip: The ridges increase surface friction, improving the webbing's ability to hold securely in buckles or hardware without slipping, which is critical for safety harnesses.

Flexibility & Handling: The structured yet flexible nature of the corrugated weave makes the material conform better to complex shapes and is easier to work with during manufacturing and application.

Abrasion Resistance: The raised surface can provide an additional layer of wear resistance, as the ridges act as a buffer against friction.

Aramid Material Properties (Kevlar/Nomex)

Inherent Flame Resistance: Unlike many other webbings, aramid fibers do not require chemical treatments to be flame-retardant. They are inherently non-combustible and will not melt or drip when exposed to heat.

Extreme Heat Stability: They remain stable at temperatures up to 560°C (1,040°F) and maintain structural integrity in extreme cold (down to -196°C).

Superior Strength: Aramid webbing is approximately 5–6 times stronger than steel on an equal-weight basis.

Primary Applications

Safety Harnesses: Used in fall protection systems for utility workers, firefighters, and industrial personnel.

Military & Aerospace: Applied in load-bearing equipment, seat restraints, and tactical gear that must adhere to strict flammability standards (e.g., FAR 25.853(a)).

Industrial Slings: Used in high-temperature hoisting and lifting operations where strength and non-slip properties are crucial.

Webbing Customization

● Material: PP, Nylon, Nylon 6.6, Recycled, Polyester, Polyester/Cotton Blends, Dull yarn, Aramid, Kevlar, UHMWPE

● Function: Anti infrared ( 350-3000nm ), Fireproof ( FAR 25, ISO 3795 ), Waterproof ( Fluorine -Free ), Anti-UV ( Color fastness 4-5 grade ), Resin treatment etc.

● Camouflage: customized, available in double sides pattern matching.

● Color: customized, Pantone, RAL, LAB value, fabric, webbing swatch.

● Specification: Width in 5-300 mm, thickness in 0.5-8 mm

● Weave: Flat, plain, tubular, twill, herringbone etc.
